Product Description



Characteristics

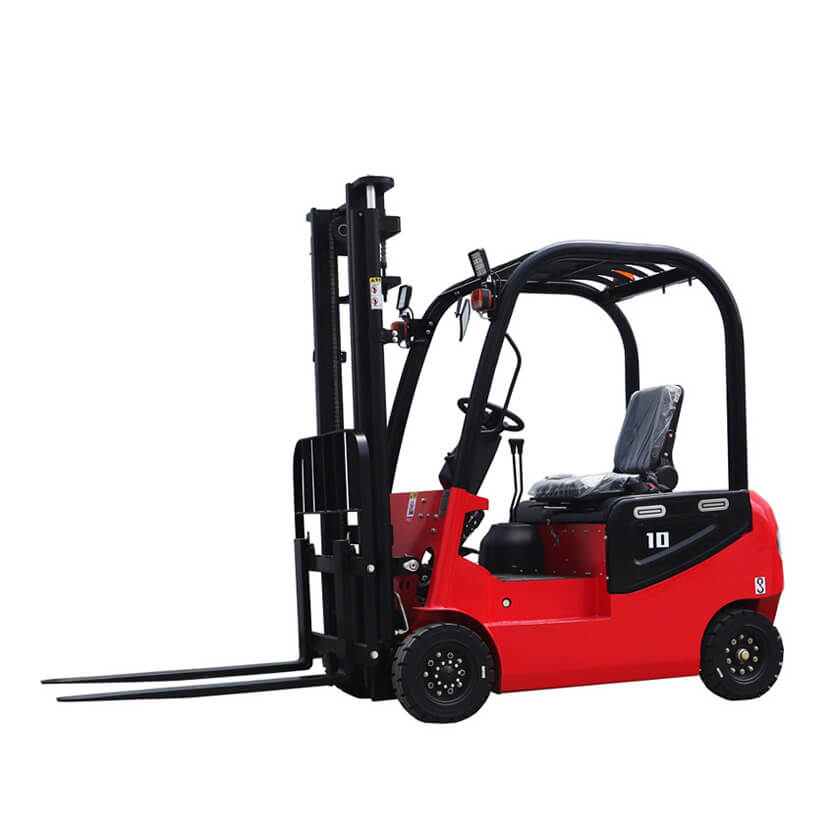

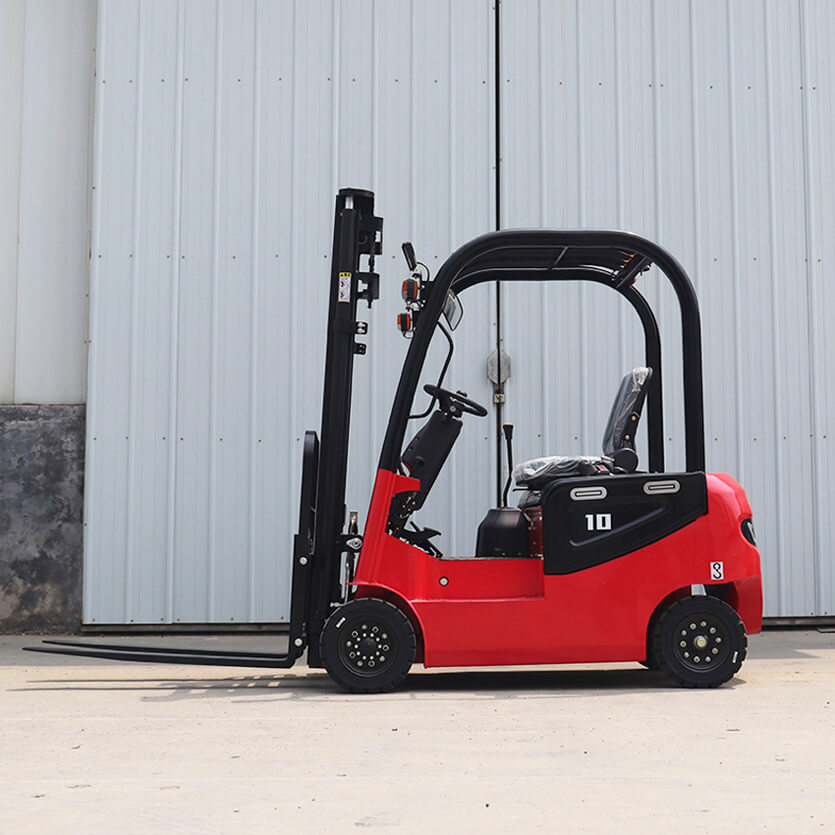

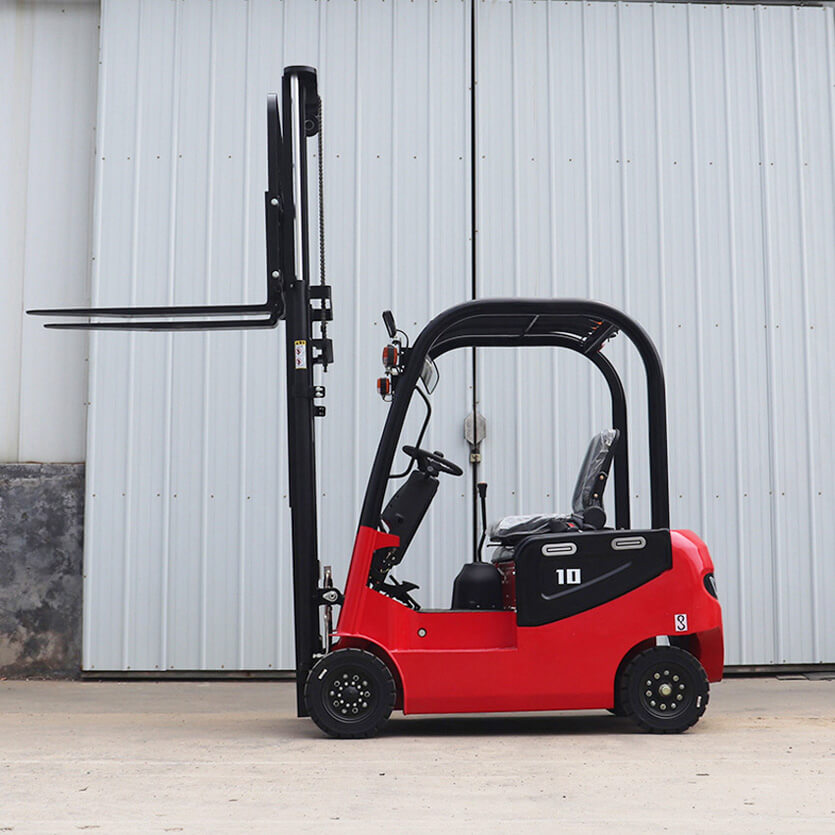

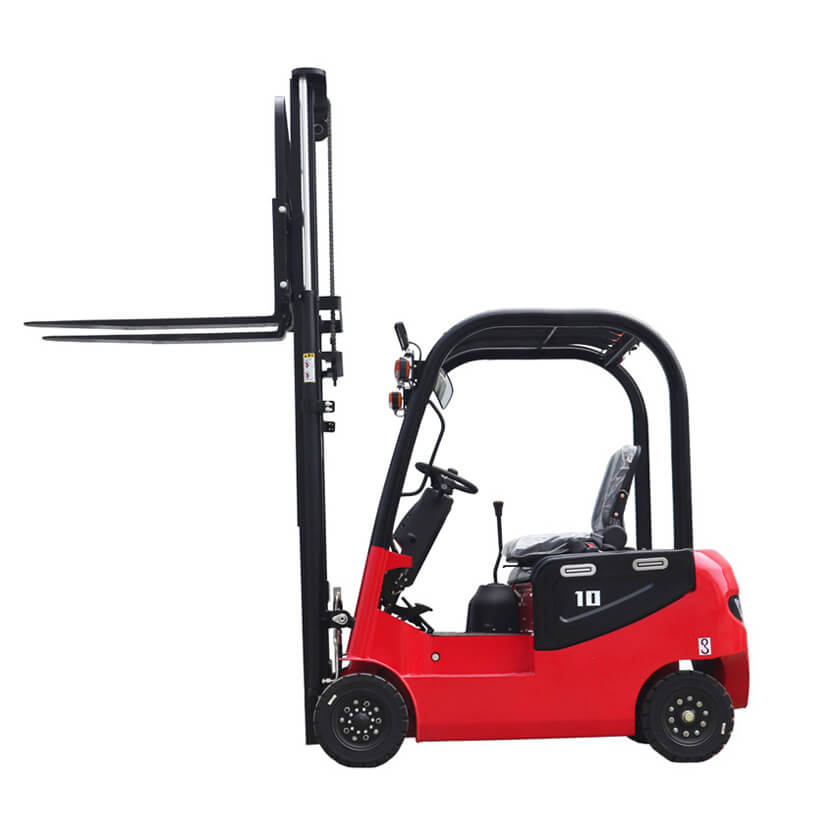

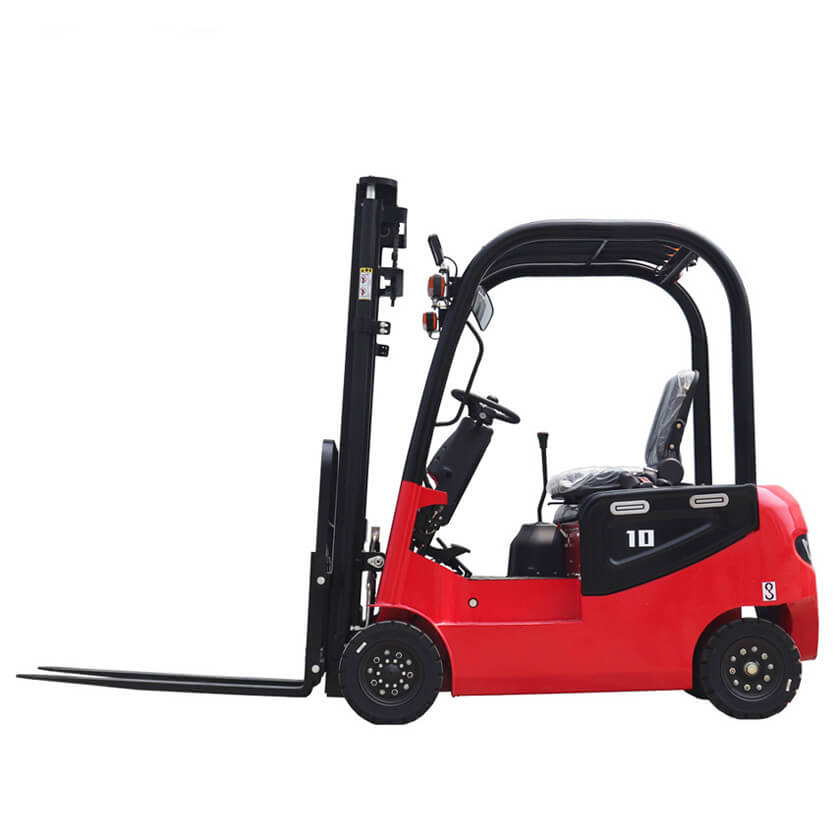

Model UnitJG-10E
Driving mode
seated
Rated capacitykg1000
Load center distance mm500
Power mode
lead-acid battery
Wheelbasemm1330
Performance
Travel speed,laden/unladenkm/h10/11
Lifting speed,laden/unladenmm/s220/230
Lowering speed,laden/unladenmm/s550
Maximum negoniable gradient,laden/unladen%15/20
Weight
Service mass(with battery) kg1530
Axle load:unloaded,front/rearkg
Axle load:loaded,front/rearkg
Battery voltage /nominal capacityV/Ah60V/120Ah
Battery weightkg150
Electrical configuration
Drive motor power-60 minuteskW5
Lift motor  power-15 minuteskW4.5
Drive motor controlling mode
MOSFET/PMSM
Lifting motor controlling mode
MOSFET/PMSM
Service brake/parking brake
Hydraulic/Mechanial
Tyre
Tyre type
Solid tire
Wheels number(front/rear)
2/2
Front trackmm910
Rear trackmm865
Tyre(front)
15*4 1/2-8
Tyre(rear)
15*4 1/2-8
Size
Front overhangmm308
Tilt of the mast,front/rear°5/10
Height,mast retractionmm2017
Free lift heightmm/
Overall maximum lift heightmm3000
Height,mast extendedmm3957
Overhead guard heightmm1847
Lateral Fork Adjustment(Outside of Forks)Max/Minmm970/200
Fork size(TxWxL)mm32*100*1070
Truck body length(fork excluded)mm1980
Truck body widthmm1020
Turning radiusmm2050
Groubd clearance under mastmm77
Ground clearance at center of wheelbase(laden)mm100
 Width of aisle right-angle stacking
(pallet1000x1000mm clearance 200mm)
mm3400
 Width of aisle right-angle stacking
(pallet1200x1200mm clearance 200mm)
mm3650
