Product Description

	Model	Unit	JG-500S	JG-500C	JG-960	JG-960C

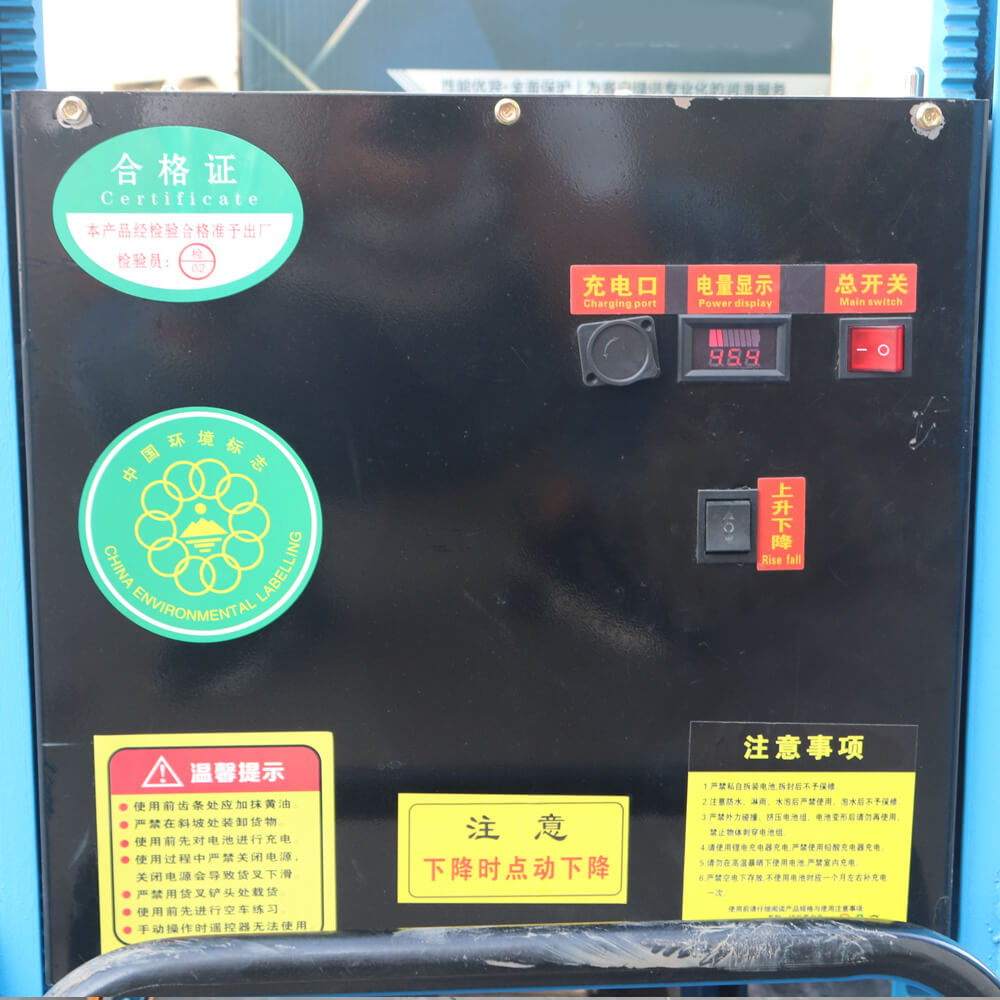

Operation	Operation method		RC/button	RC/button	RC/button	RC/button
	Lifting method		electric	electric	electric	electric
	Walking style		manual	manual	manual	manual
Dimension	Total length	mm	1410	1435	1535	1535
	Total width	mm	840	1010	940	1050
	Total height	mm	1600	1750	1750	1750
	Total weight	Kg	151	175	225	230
Fork size	Min. ground clearance	mm	50	40	40	40
	Max. lifting height	mm	1250	1250	1250	1250
	Fork outer width	mm	550	556	556	556
	Fork inner width	mm	230	236	236	236
	Fork length	mm	1105	1150	1170	1170
	Single fork width	mm	160	160	160	160
	Working height	mm	50	50	50	50
Performance	Rated load	Kg	500	500	960	960
	Load center distance	mm	400	400	400	400
	Max. lifting speed	mm/min	3600/4800	3600/4800	3600/4800	3600/4800
	Max. descent speed	mm/min	4800	4800	4800	4800
	Lifting motor	double-sided	36V400W	48V550W	48V800W	48V800W
	Battery		lithium battery	lithium battery	lithium battery	lithium battery
	Battery capacity		36V15AH	48V12AH	48V15AH	48V15AH
	Battery weight	Kg	2	4	4.5	4.5
	Charging specifications	One	220V AC	220V AC	220V AC	220V AC
	Charging specifications	Two	12V/24V DC	12V/24V DC	12V/24V DC	12V/24V DC
	Charging time	H	3~5	3~5	3~5	3~5
Walking system	Steering\walking\floating wheel materials		Nylon/Polyurethane/Metal	Nylon/Polyurethane/Metal	Nylon/Polyurethane/Metal	Nylon/Polyurethane/Metal
	Front wheel track	mm	400	400	400	400
	Rear wheel track	mm	730	730	730	730
	Number of steering\walking\floating wheels		2/2/16	2/2/16	2/4/16	2/4/16
	Travel wheel size	mm	Φ75x46	Φ75x46	Φ75x55	Φ75x55
	Universal wheel size	mm	Φ125x48	Φ125x48	Φ150x48	Φ150x48
	Floating wheel size	mm	Φ32x26	Φ32x26	Φ32x26	Φ32x26
