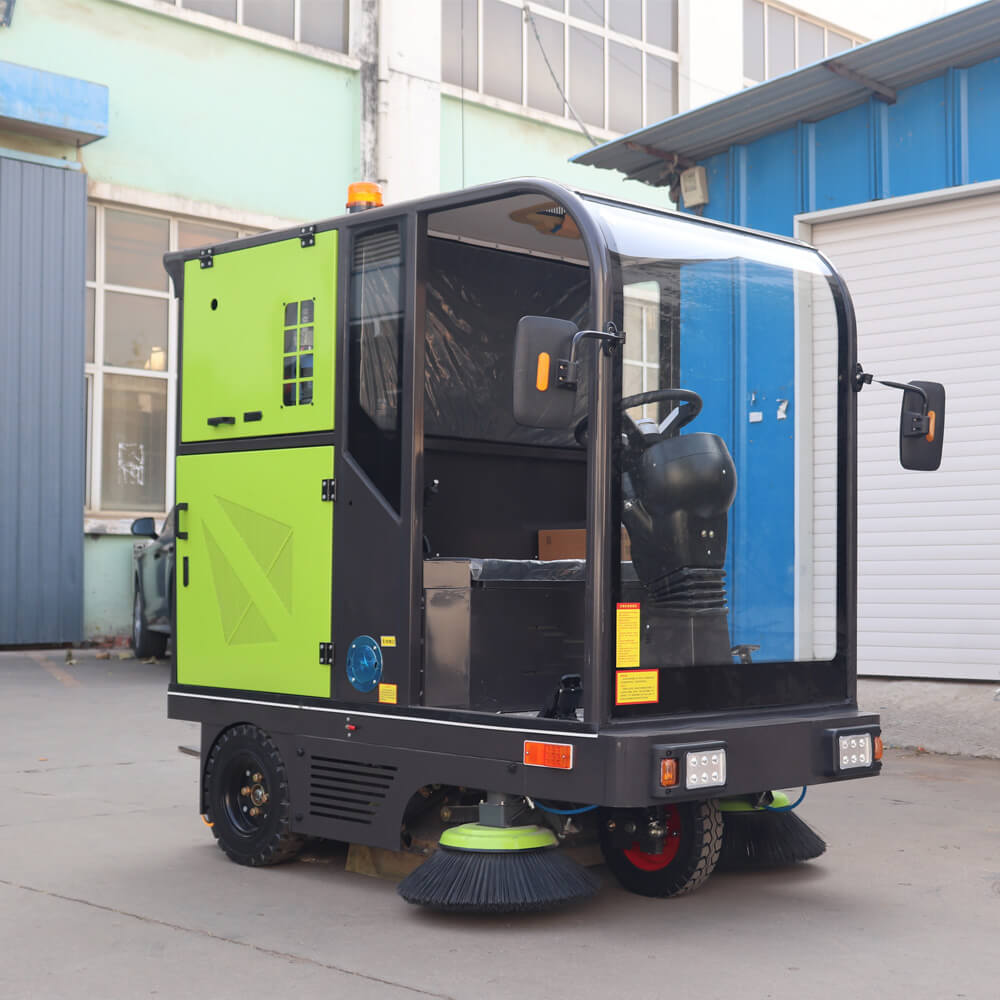

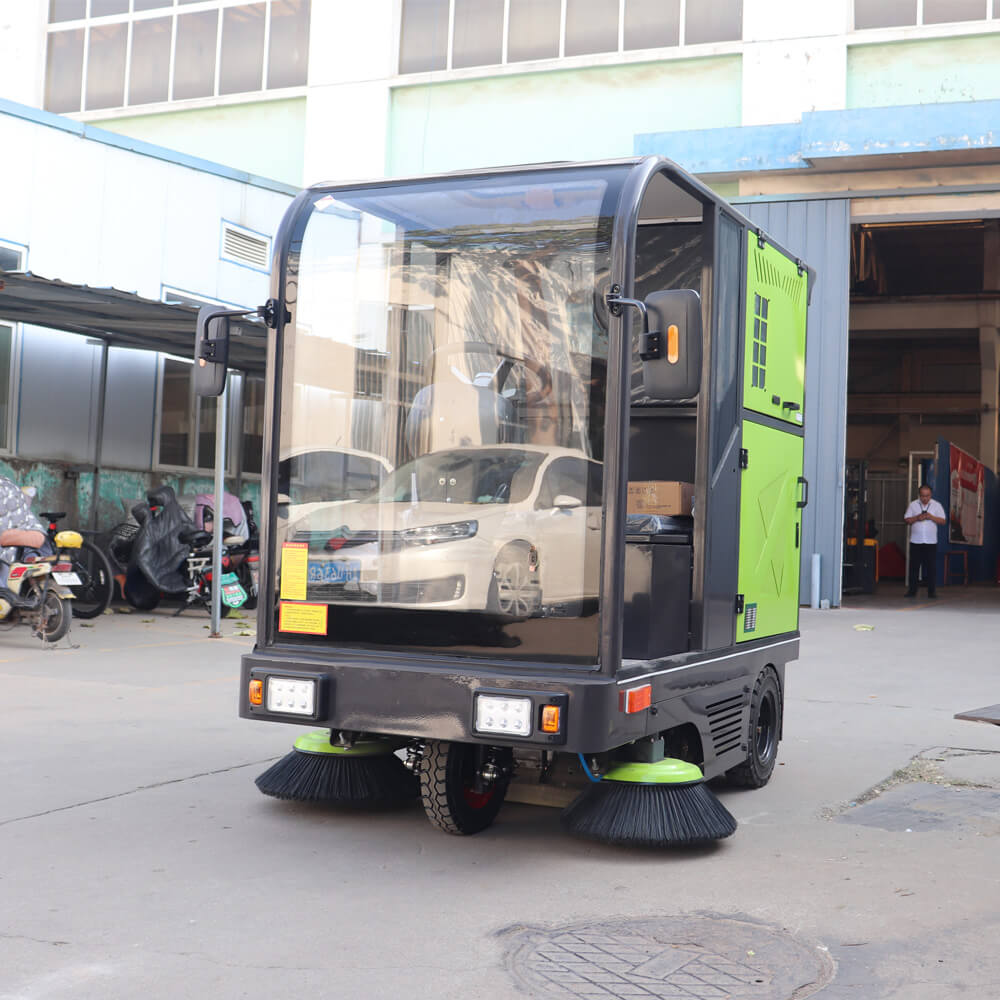

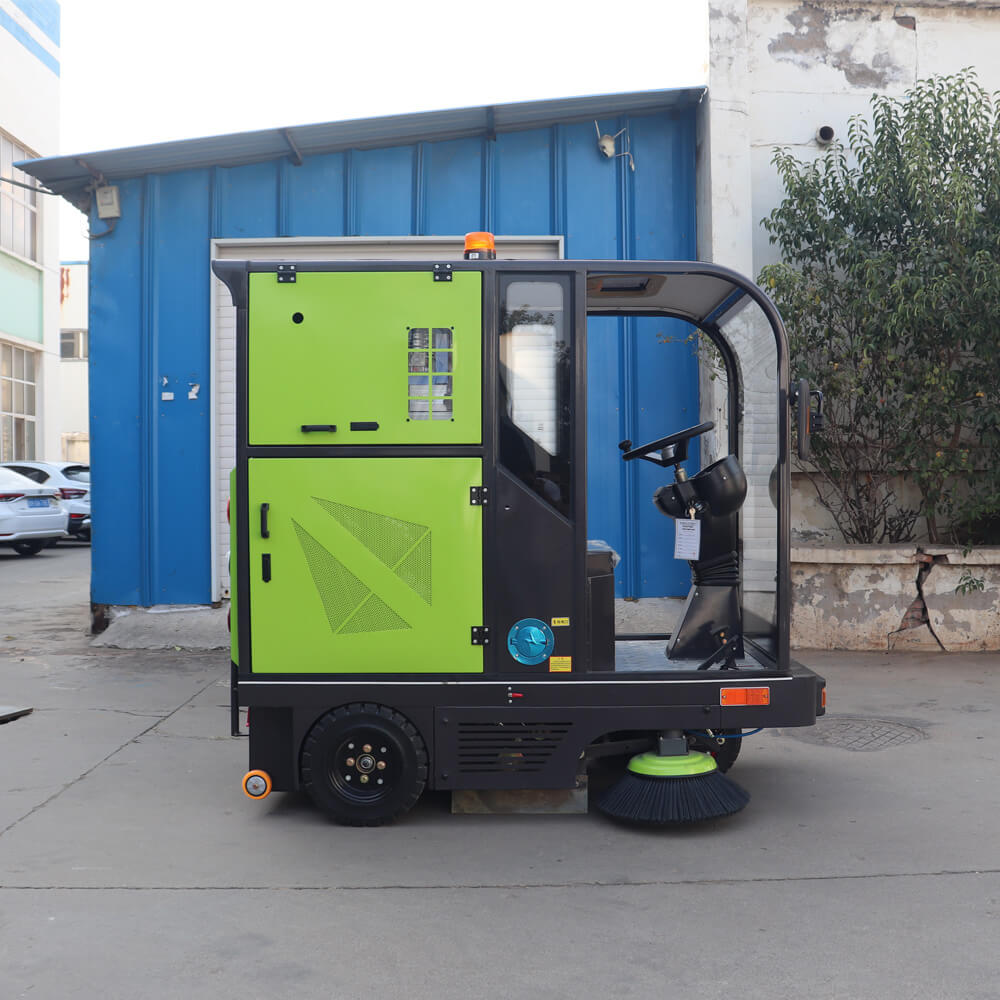

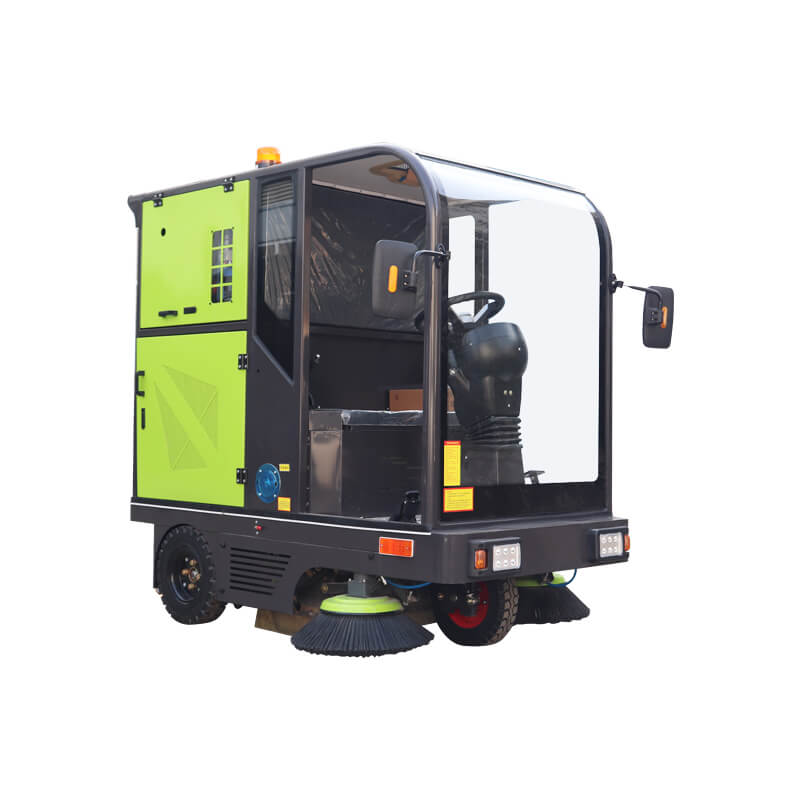

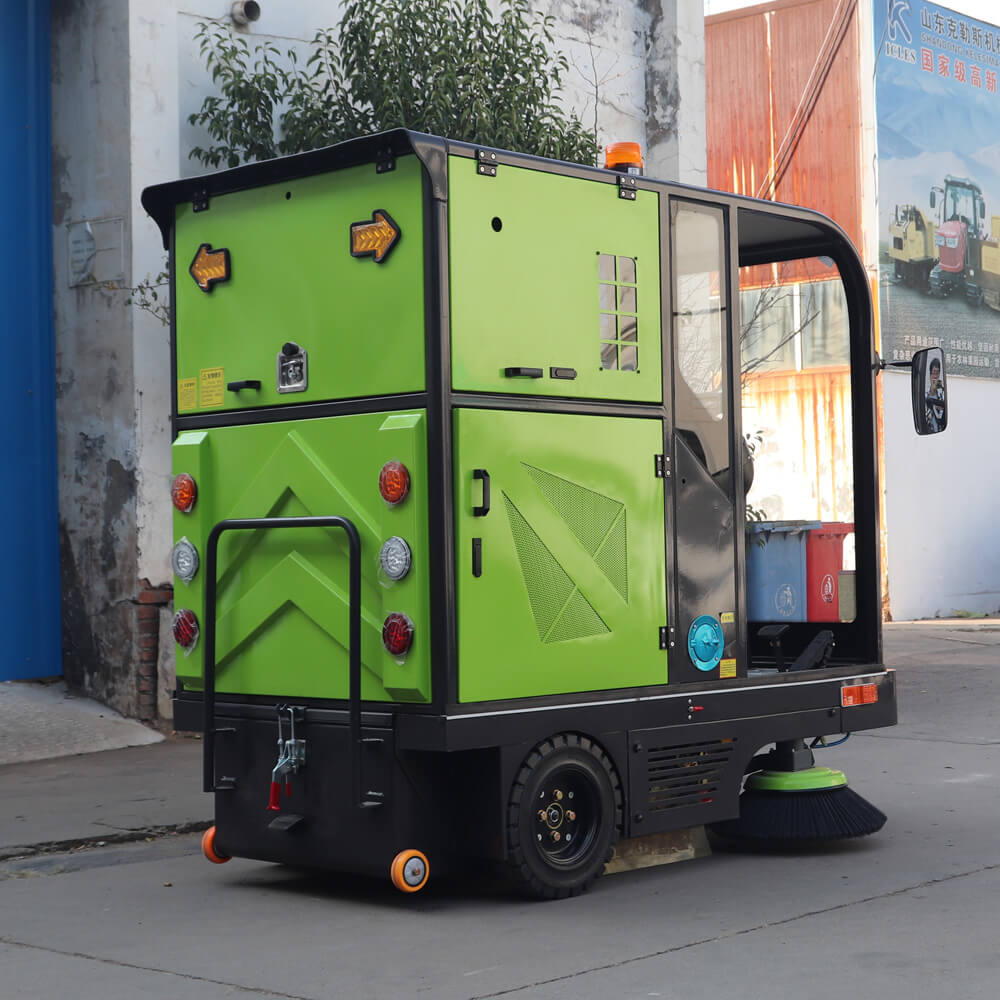

JG-1500 Floor Sweeper
1.Large capacity trash can, easy to disassemble, the garbage bin is equipped with casters for easy movement.
2.Large capacity water tank, ensuring continuous water supply for long periods of work.
3.Simple instrument, easy to operate without training, irectly controlled by buttons.

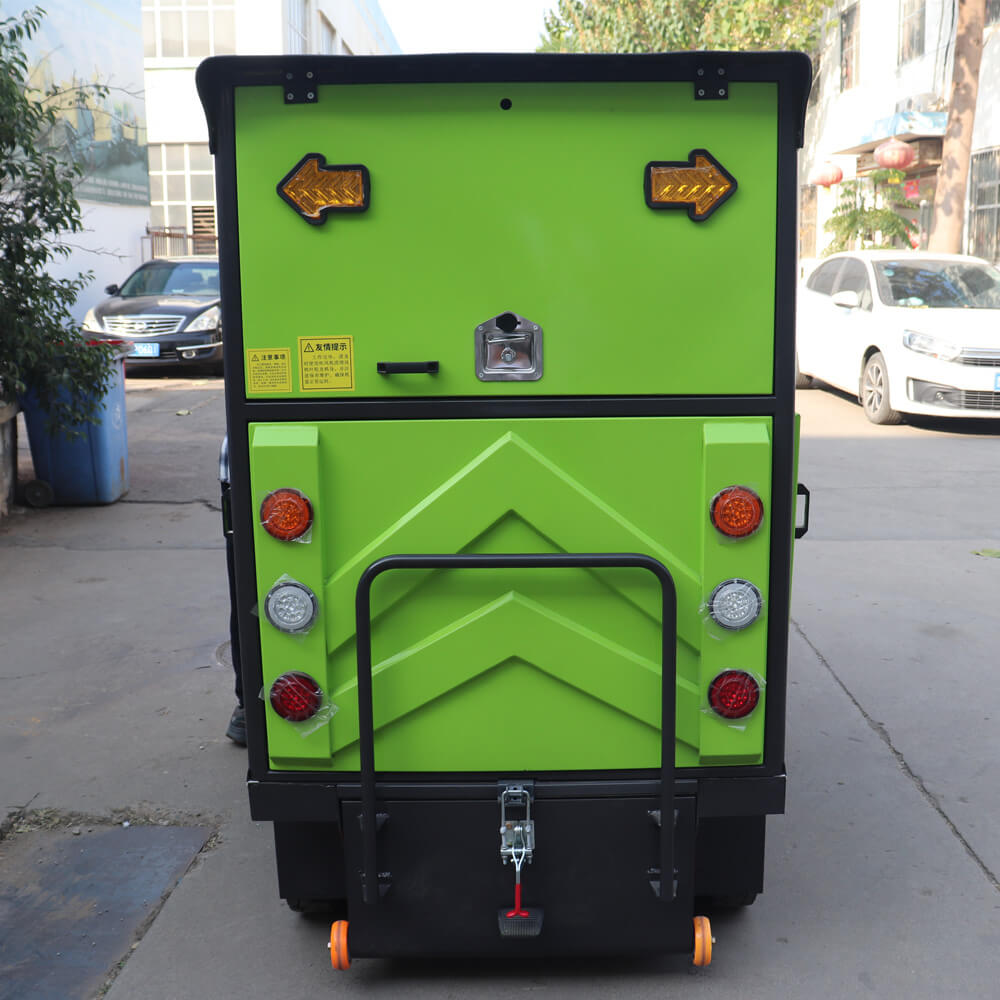

4.Warning Light, ensure safety at work
Product Description
| Model | JG-1500 | JG-1900 | JG-2300 | JG-3200 |
| Cleaning width | 1500mm | 1900mm | 2300mm | 1500mm-3200mm |
| Main brush width | 700mm | 700mm | 800mm | 800mm |
| Work efficiency | 8000-15000/h | 8000-15000/h | 15000-20000/h | 15000-20000/h |
| Travel motor | 1000W | 1000W | 2200W | 2200W |
| Walking tires | 4.00-8 solid tire | 4.00-8 solid tire | 4.00-8 solid tire | 4.00-8 solid tire |
| Roller brush motor | 800W | 800W | 1000W | 1000W |
| Side brush motor | 100W*2 | 100w*4 | 100W*4 | 100W*6 |
| Trash can capacity | 180L | 200L | 240L | 240L |
| Side brush diameter | 500mm | 500mm | 500mm | 500mm |
| Number of side brushes | 2 | 4 | 4 | 6 |
| Walking speed | 0-12km/h | 0-12km/h | 0-12km/h | 0-12km/h |
| Water tank capacity | 400L | 400L | 500L | 500L |
| Battery model | 48V 153AH | 48V 153AH | 48V 203AH | 48V 203AH |
| Weight | 720KG | 750KG | 1500KG | 1600KG |
| Single tank water cleaning area | 30000㎡/h | 40000㎡/h | 50000㎡/h | 80000m㎡/h |
| Continuous flushing time for a single tank of water | 20min | 26min | 28min | 30min |
| Physical dimension | 2200*1900*1900mm | 2200*1900*2500mm | 3300*2300*2600mm | 4000*3000*2600mm |
| Front water spray | Standard | Standard | Standard | Standard |
| Rear sprinkler | Optional | Optional | Optional | Optional |
| Fog cannon | Optional | Standard | Standard | Standard |

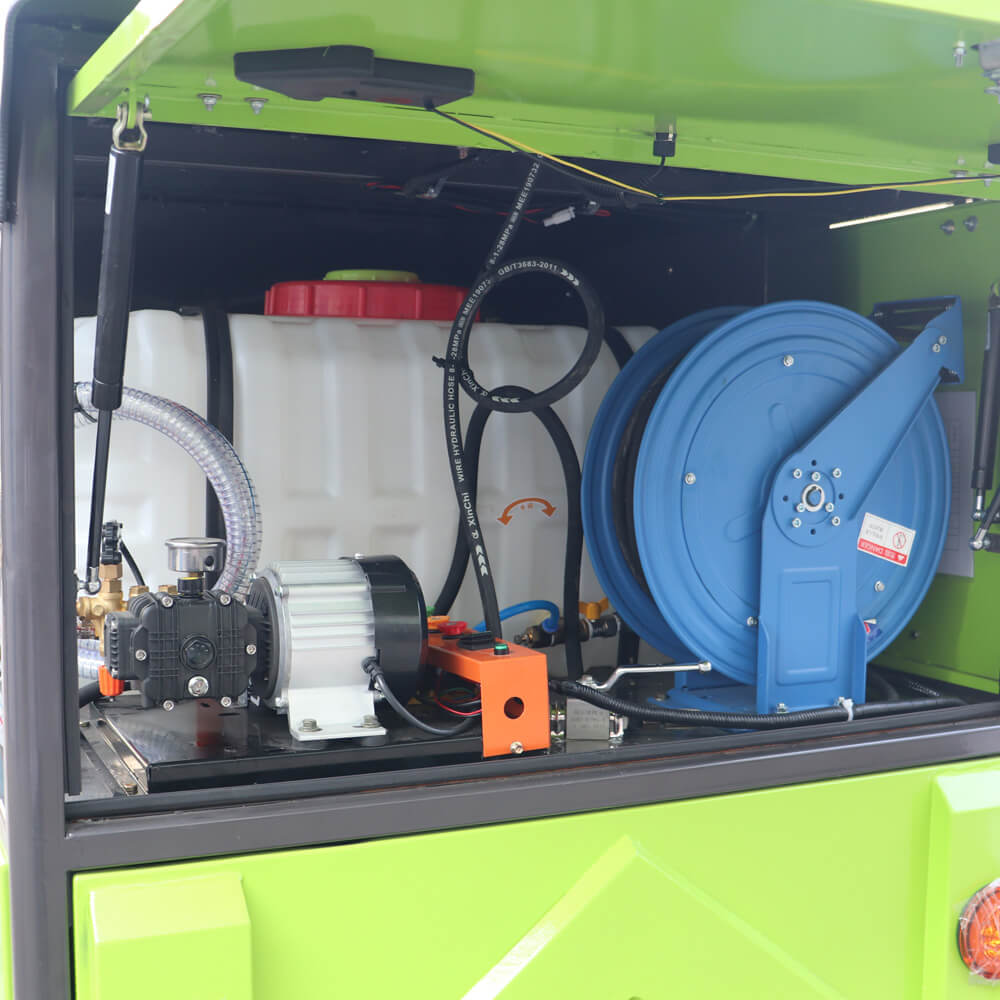

| High pressure cleaning | Optional | Standard | Standard | Standard |
| Vacuum blower | Standard | Standard | 2 fans 2 filter elements 2 vibrating dust | 2 fans 2 filter elements 2 vibrating dust |
| Electric water pump | Optional | Standard | Standard | Standard |
| Gasoline water pump | Optional | Optional | Optional | Optional |
| Firefighting equipment and tool boxes | Optional | Optional | Optional | Optional |
| Reverse image | Optional | Standard | Standard | Standard |
| Multimedia | Optional | Standard | Standard | Standard |
| Fan | Optional | Standard | Standard | Standard |
| LED display | Optional | Optional | Optional | Optional |
| Work warning light | Standard | Standard | Standard | Standard |
| Charger | Standard | Standard | Standard | Standard |
| Fog cannon remote control | Optional | Optional | Optional | Optional |
| Trailer unit | Optional | Optional | Optional | Optional |
| Rear trailer | Optional | Optional | Optional | Optional |
