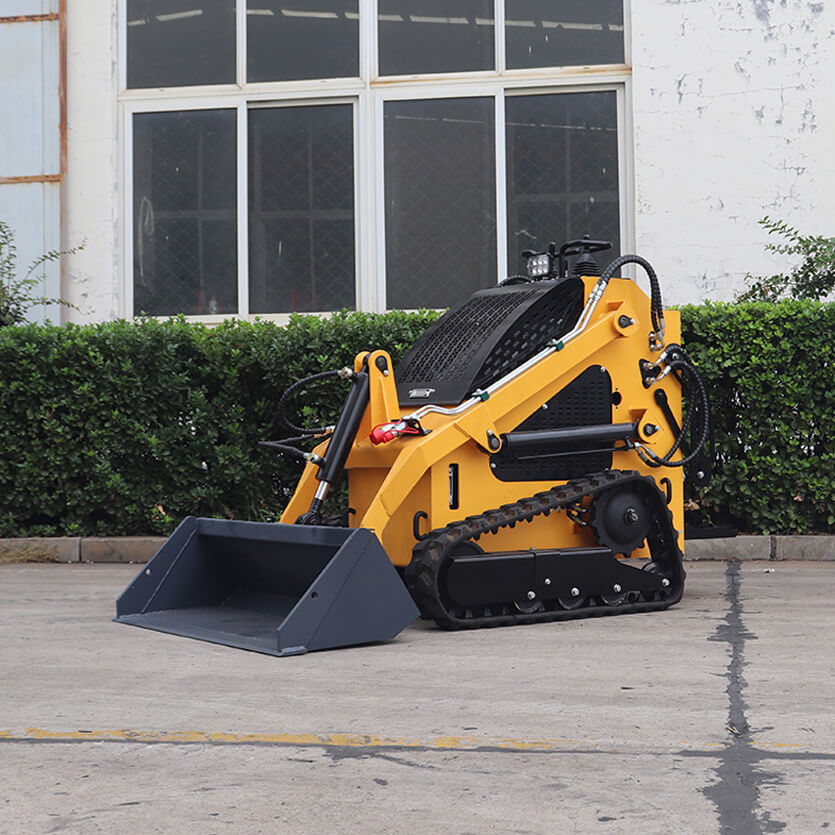

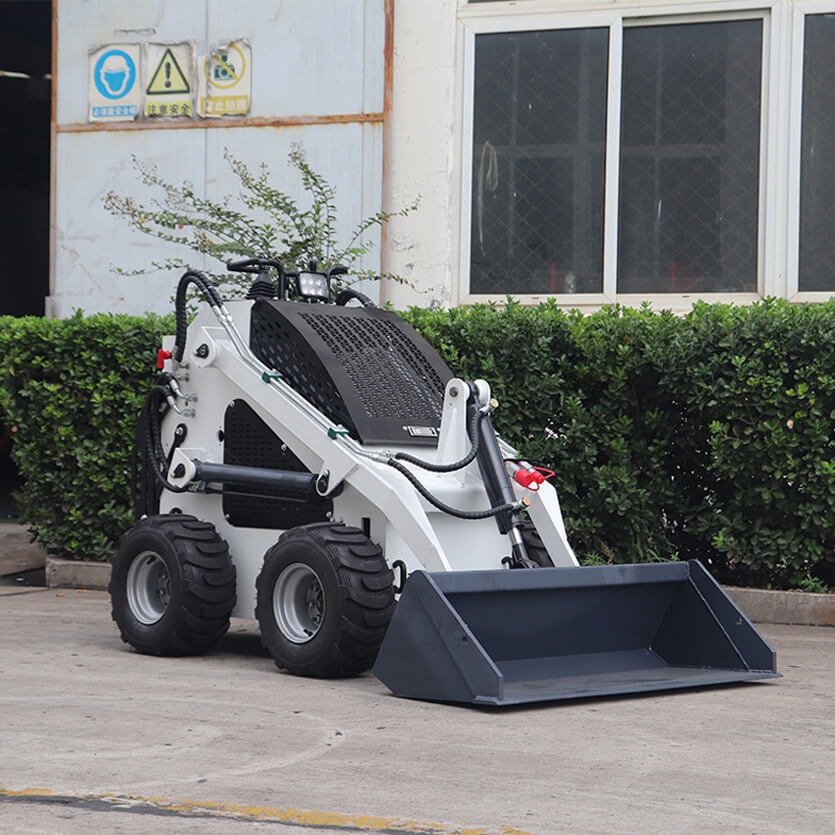

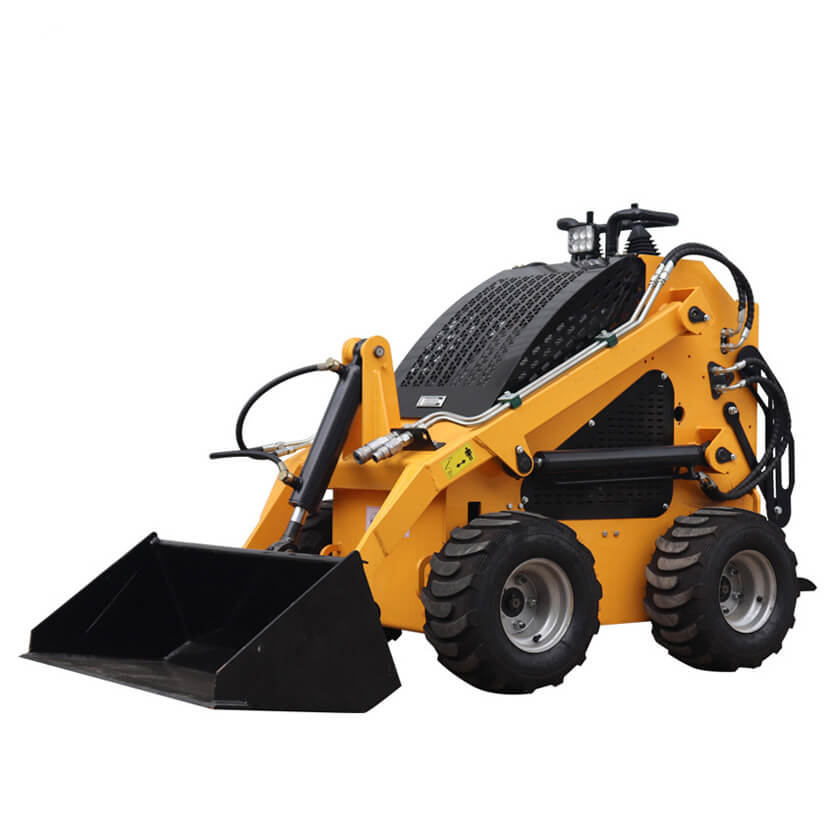

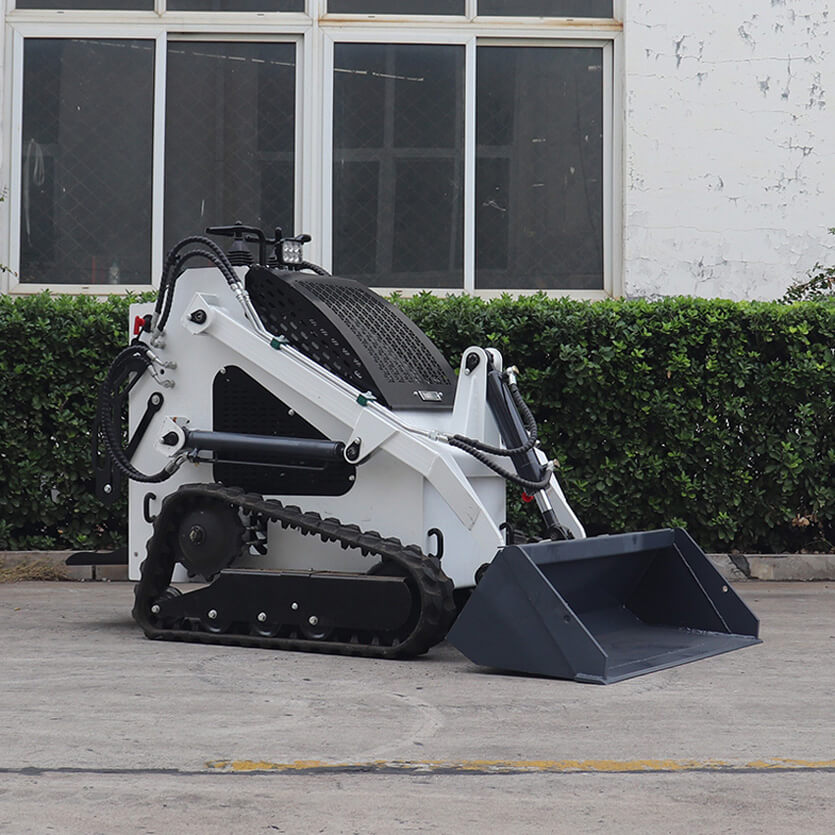

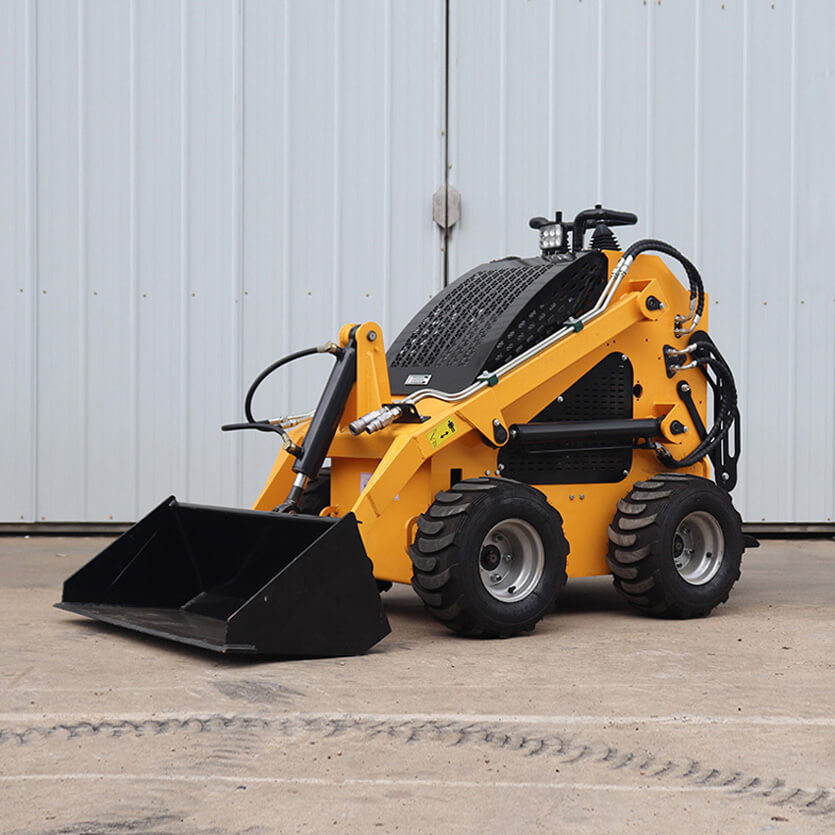

Product Description

EngineKoop/Briggs & Stratton
Rated power10/13.5HP
Calibration speed3000rpm
Intake methodNatural
Emission StandardEuro 5/EPA
Rated load200kg
Max. load300kg
Max. rising force350KN
Bucket volume0.12m³
Walking speed0-6km/h
Working system pressure17-21bar
Fuel tank volume5L
Operating weight900kg
Max. operating height2450mm
To bucket pin height1870mm
Overall height1300mm
Bucket horizontal maximum height1810mm
Total length without accessories1450mm
Overall length with standard bucket2100mm
Max. height unloading angle34°
Unloading height1510mm
Unloading distance450mm
The flip angle of the bucket on the ground27°
Bucket flip angle at highest114°
Ground clearance150mm
Tail length280mm
Wheel base (standard tires)720mm
Total width (standard tires)880mm
Bucket width1000mm
