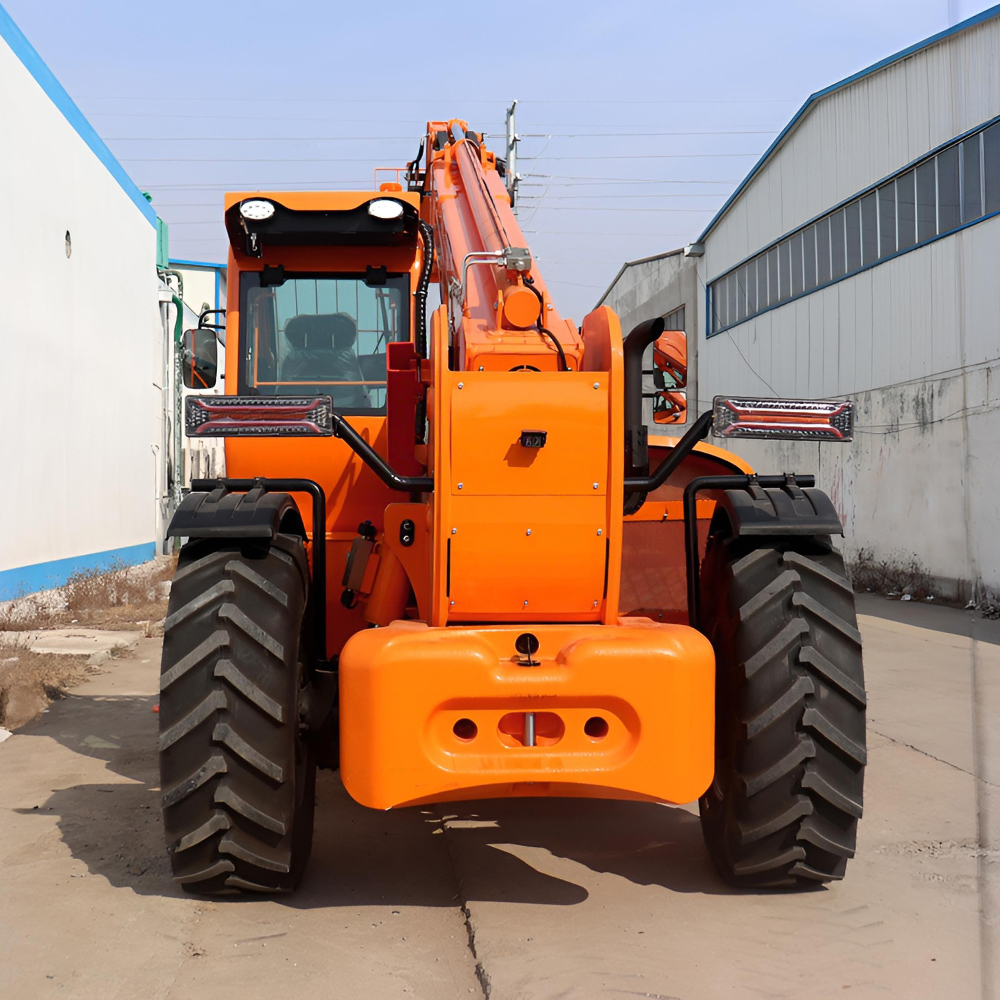

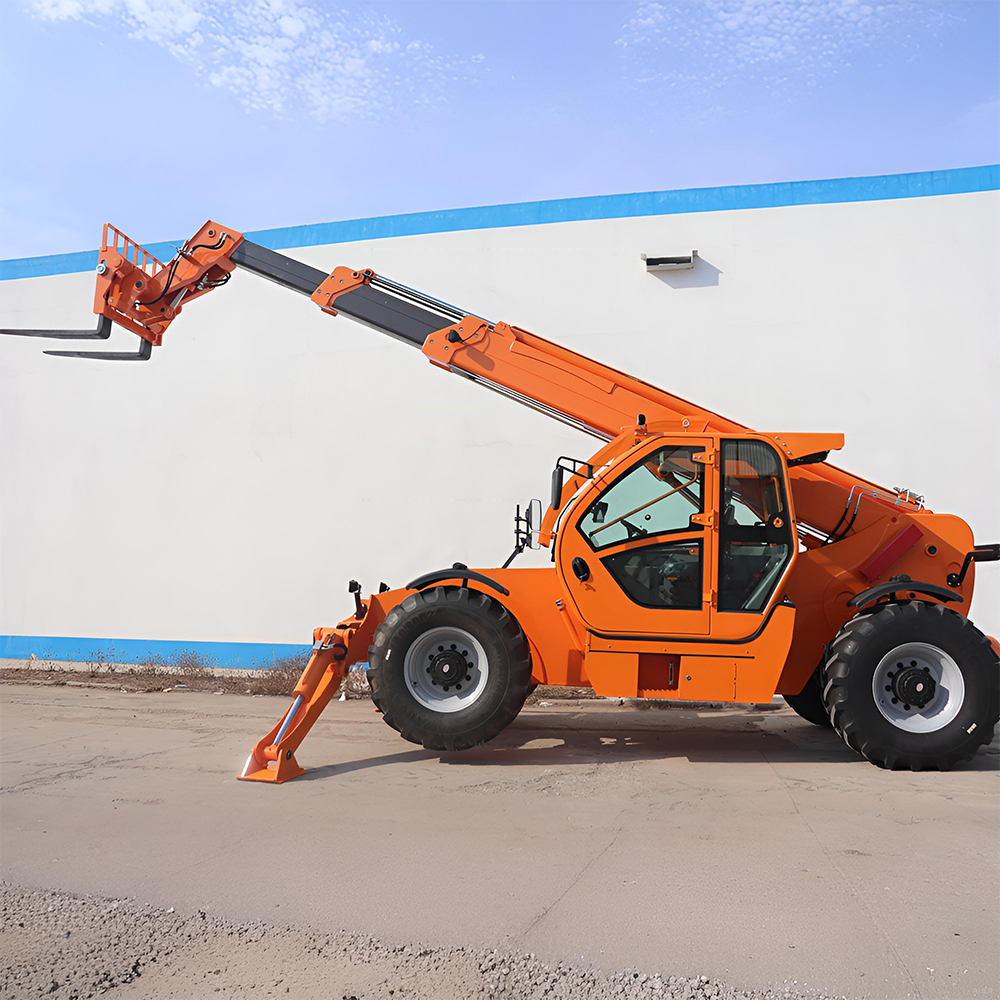

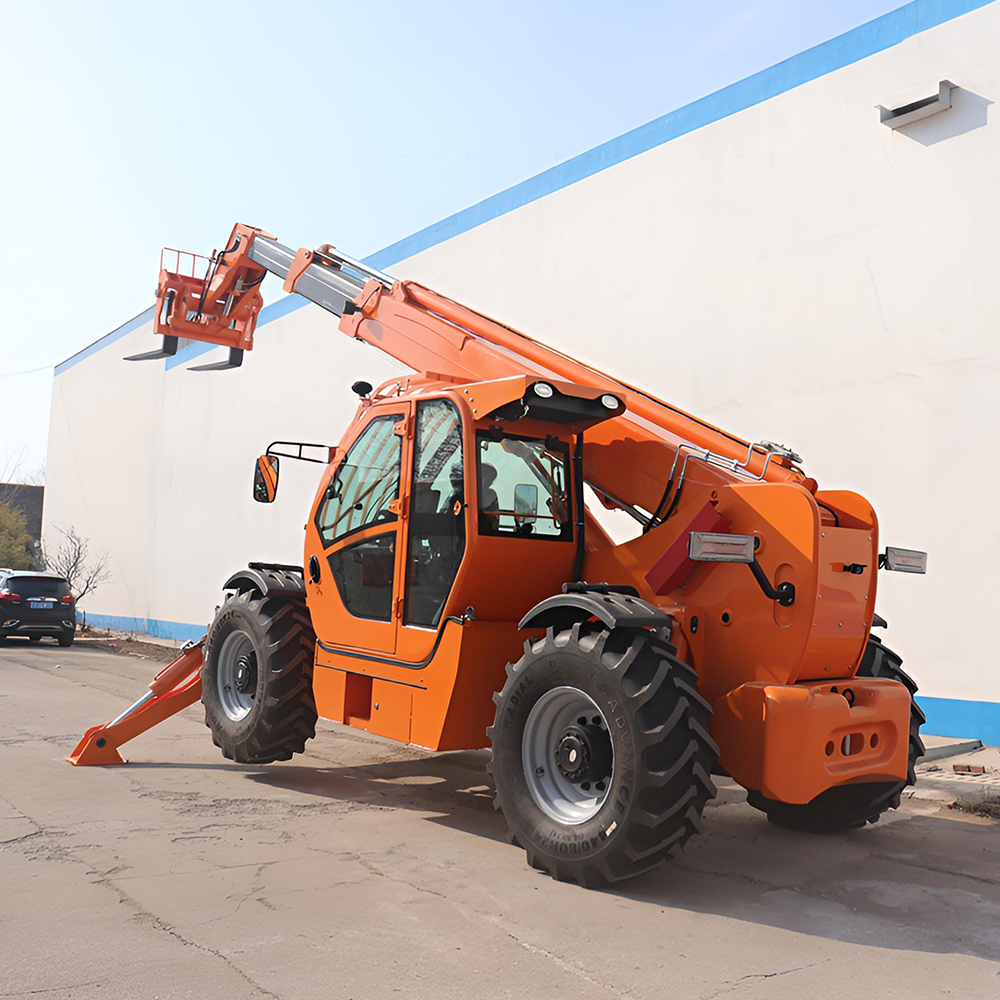

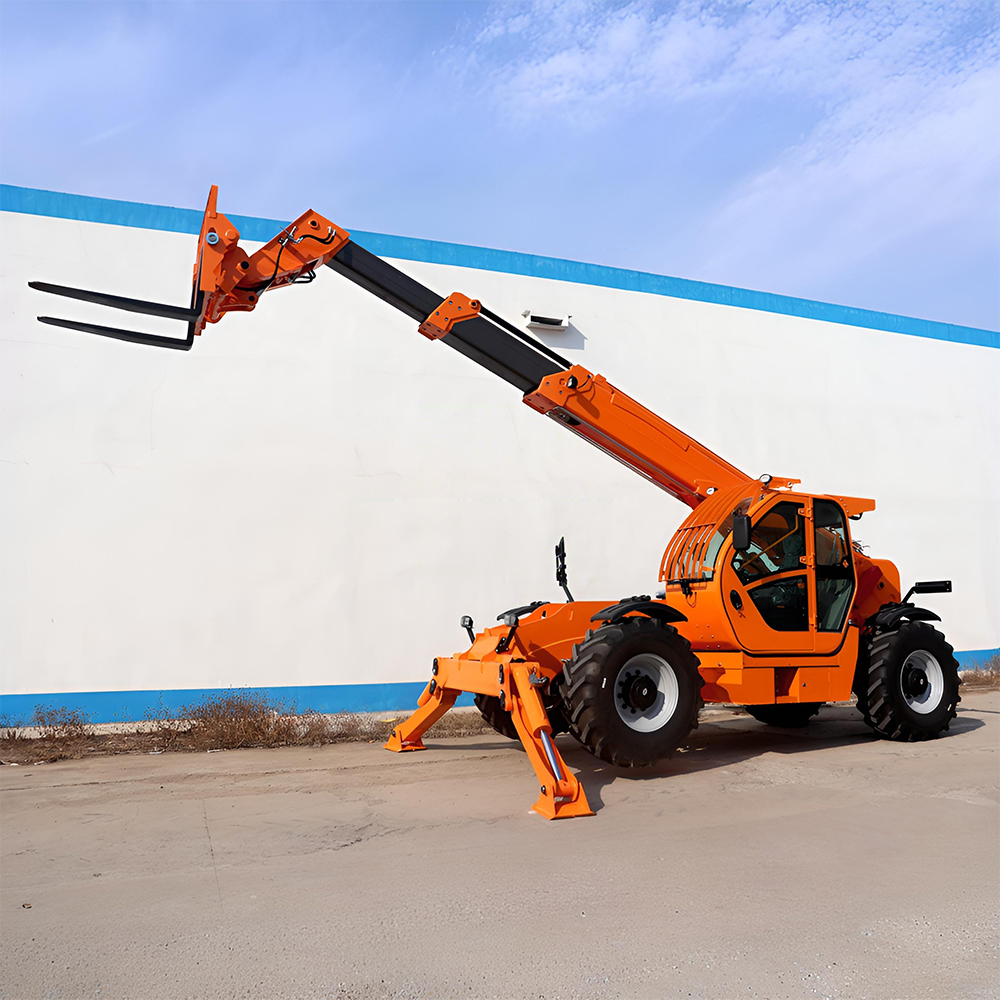

HS-T5014 Telehander
1.Our telescopic forklifts are equipped with hydraulic quick-connect couplings, allowing for the replacement of dozens of different attachments in minutes. In addition to forks, they can be easily replaced with buckets, log grapples, sweepers, aerial work platforms, augers, grippers, and more.
2.The telescopic forklift is four-wheel drive and equipped with large off-road tires and a robust chassis, enabling it to travel and operate stably in muddy, sandy, rugged, and other harsh road conditions.
Product Description
| Model | HS-5014 | Tilt-up angle | 12 ° |
| Max. capacity | 5000 kg | Tilt-down angle | 114 ° |
| Max. lifting height | 13.8 m | External turning radius(over tyres) | 4.1 m |
| Max. outreach | 7.0 m | Unladen weight(with fork) | 13300 kg |
| Overall length to carriage | 6.4 m | Tires type | Tubeless |
| Length to face of forks | 7.62 m | Standard tires | 440/80-24 |
| Min transport size | 5.6 m | Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Overall width | 2.35m | Lifting | 18 s |
| Track width | 1.95 m | Lowering | 14.4 s |
| Overall height | 2.55 m | Extension | 17.9 s |
| Wheelbase | 3.6 m | Retraction | 16.5 s |
| Ground clearance | 0.38 m | Crowd | 5.1s |
| Overall cab width | 0.84 m | Dump | 4 s |
